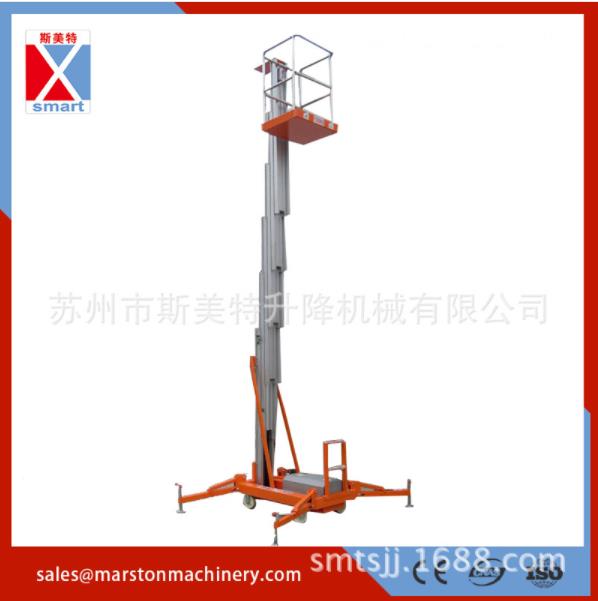

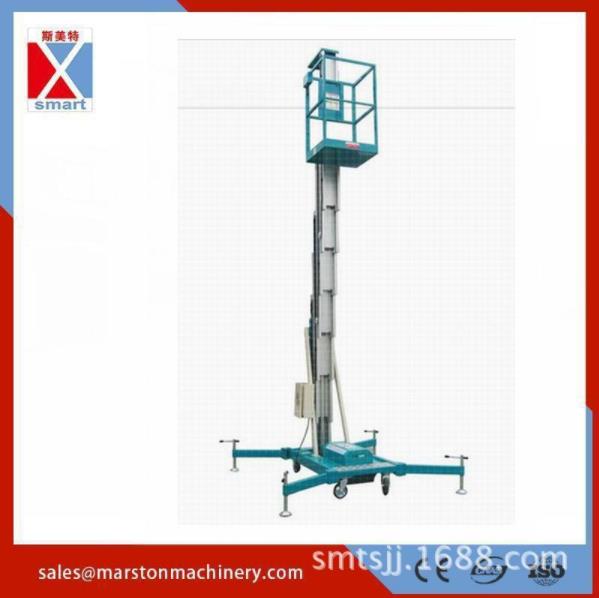

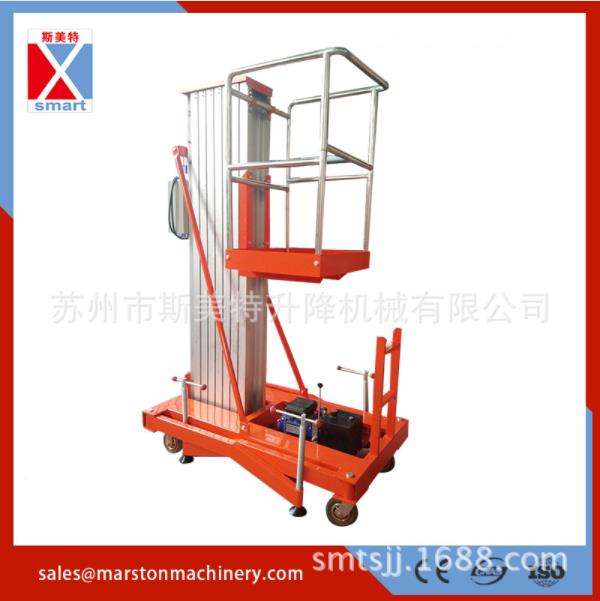

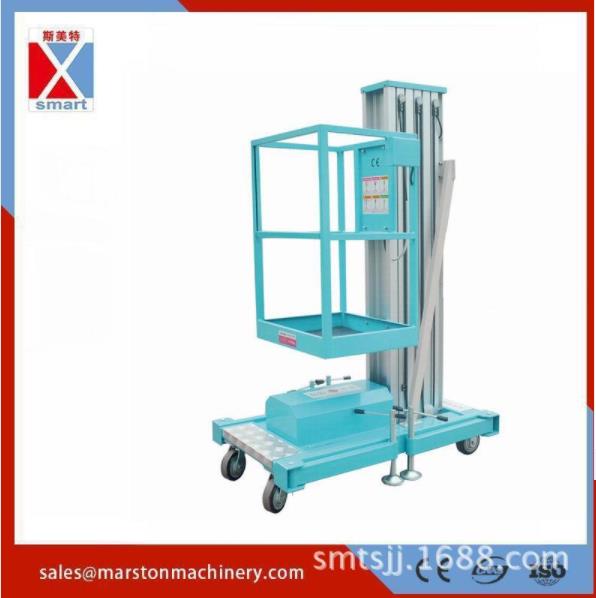

Single aerial work platform

Standard configuration:

Single mast lift suitable for: single climb

Platform maximum height specification: optional 6m, 8m, 9m

Power supply: default: single-phase AC (AC220V/50HZ)

Mobile: manual push

Optional equipment:

Battery DC direct supply (single DC)

Battery DC inverter (AC and DC)

It can be installed in car compartments such as pickup trucks and light trucks (vehicle type), and customers need to bring their own vehicles and provide cabin data.

Trailer-mounted undercarriage can be provided as needed to adapt to field work or large distance driving

Can be customized into insulated countertops (applicable to power distribution rooms, etc.)

Can be customized into electrical explosion-proof (applicable to oil and gas, etc.)

Single mast lift features:

1 compact structure, can enter narrow passages and elevators;

2 The main lifting mast is made of high-strength aluminum alloy extruded profiles, which has high safety and light weight;

3 The self-developed integrated built-in sliders and slide rails are used between the columns to minimize the dynamic gap between the masts.

More stable and reliable, far superior to the ordinary independent guide wheel type support structure;

4 lifting drive chain adopts 4X4 chain, double chain design, industrial plate chain, galvanized chain without rust, high bearing capacity and safety factor; stainless steel guardrail for guardrail;

5 Hydraulic power unit adopts integral pumping station, which is compact in structure and reliable in performance; hydraulic system is equipped with emergency descending function to prevent power outage and

Unexpected situation and simple emergency operation;

6 equipment control voltage is 24V DC, effectively guarantee personal safety; equipment is equipped with leakage protection switch, emergency stop switch, limit electric

Limit switch, etc., the button box is waterproof design;
